XY-TN-269 Automatic maxi toilet paper roll heat shrinking packing machine for tissue factory use
Product Description
Automatic sealing and shrink wrapping machine series, are widely applied to the shrink package of maxi roll tissue, JRT jumbo roll toilet paper, carton box, foodstuff, beverage, pharmaceuticals, audiovisual products, hardware, cosmetics, books, toys, plastic, electronic components and so on.
Feature& Functions
1. The horizontal cross-knife of the sealing part adopts the vertical driving, and the vertical knives adopts the international advanced constant-temperature side sealing knives. The sealing line is straight and firm, which can ensure the sealing and cutting line in the middle position of the product and achieve perfect sealing effect.
2. Products with different package sizes can be completed with only hand wheel adjustment, increasing reliability and making it easier to operate.
3. Feed length control is combined with electric eye detection and timer to precisely control the length of the film, making the shrinking effect easier to control.
4. Automatically coiled waste material, controlled by a separate motor, does not slack or over-tighten and cracks, and the waste material is easy to disassemble.
Product Parameter
| Model |
4525L cutting and sealing machine |
| Voltage |
380V 50/60hz |
| Power |
1.35kw |
| Packing height |
Max. 250mm |
| Sealing size(L*W) |
1600*450mm |
| Packing speed |
15m/min |
| Air pressure |
5kg/m² |
| Machine size |
1810*980*1460mm |
| Weight |
320kg
|

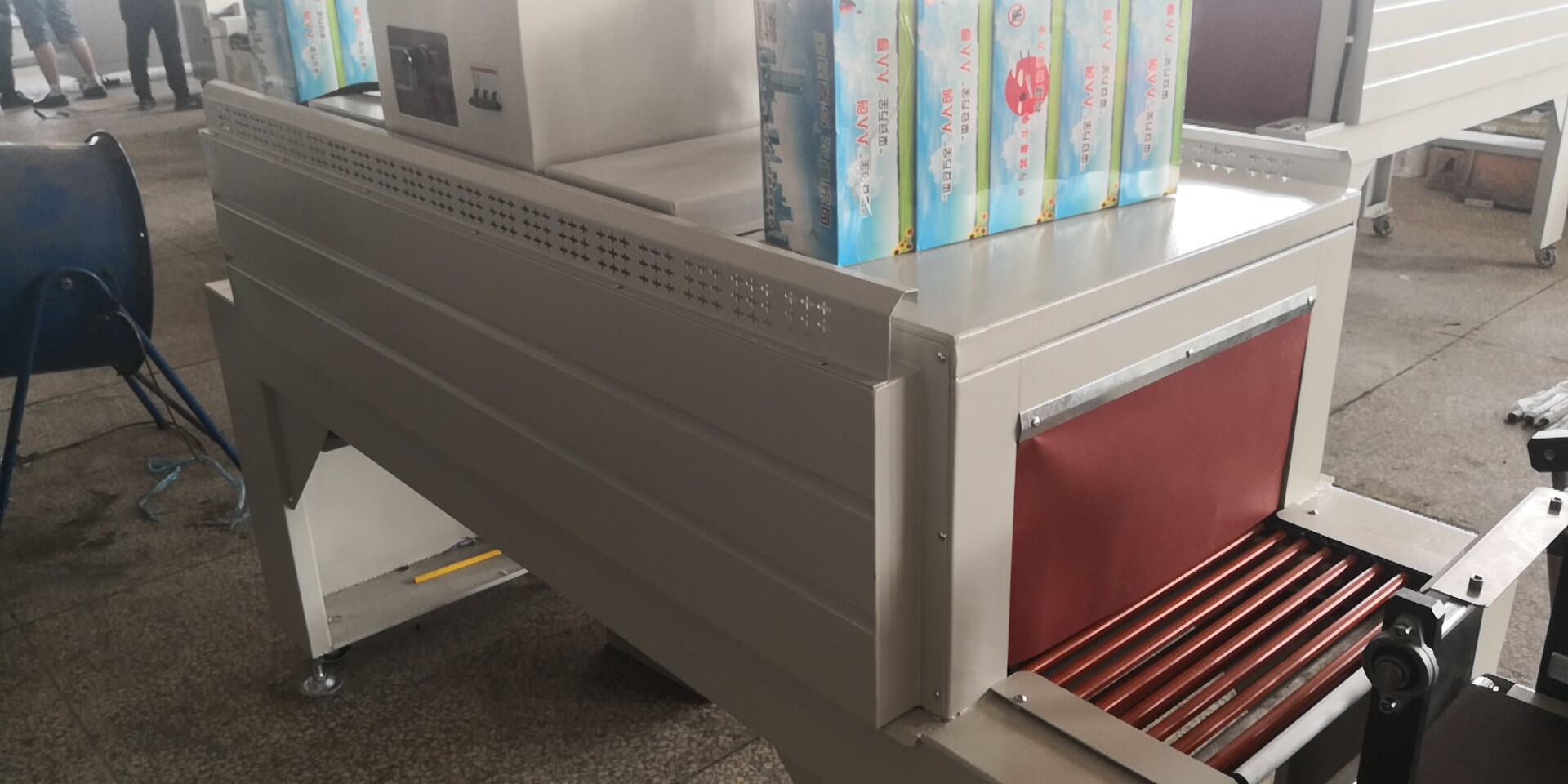

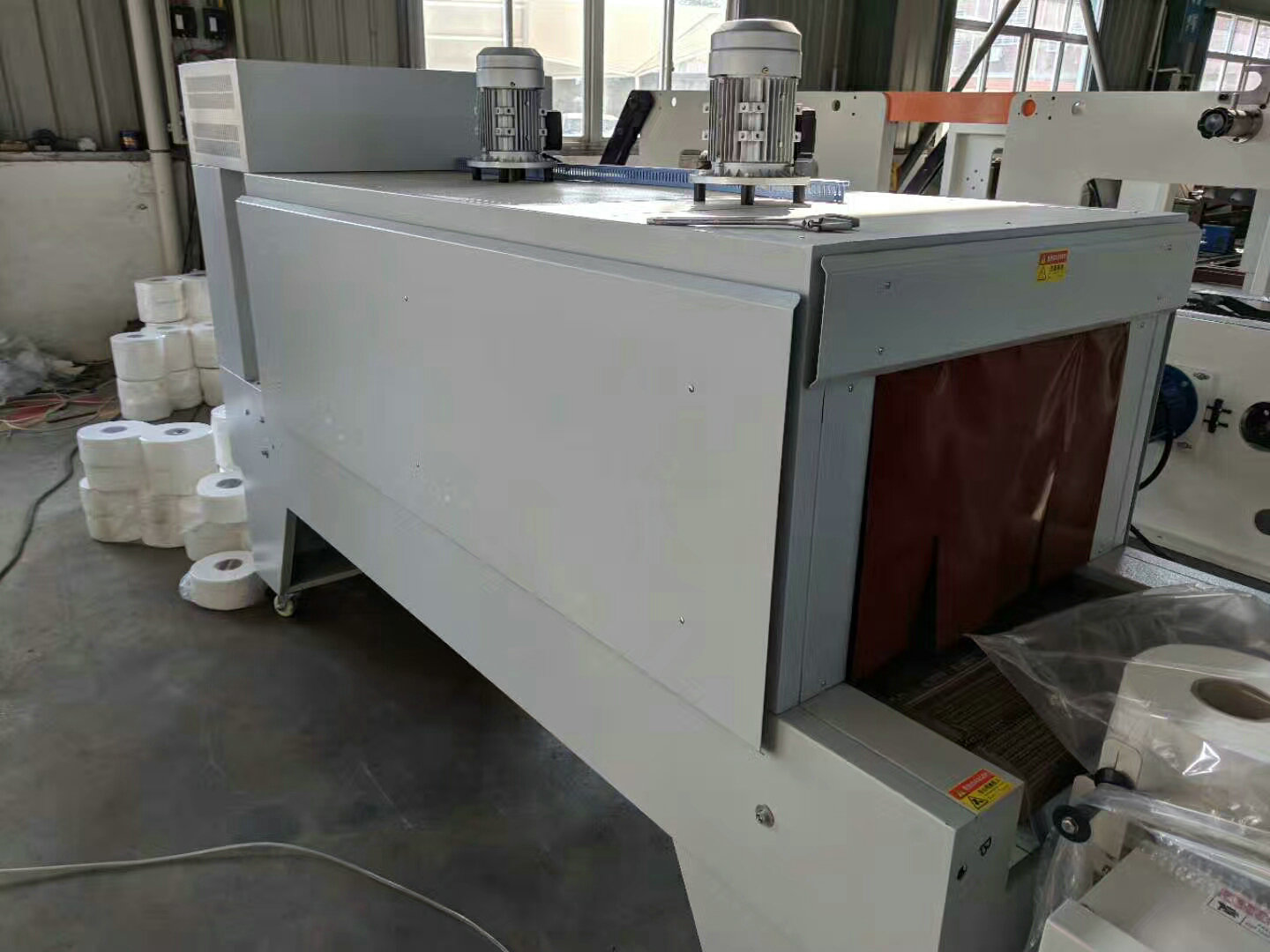

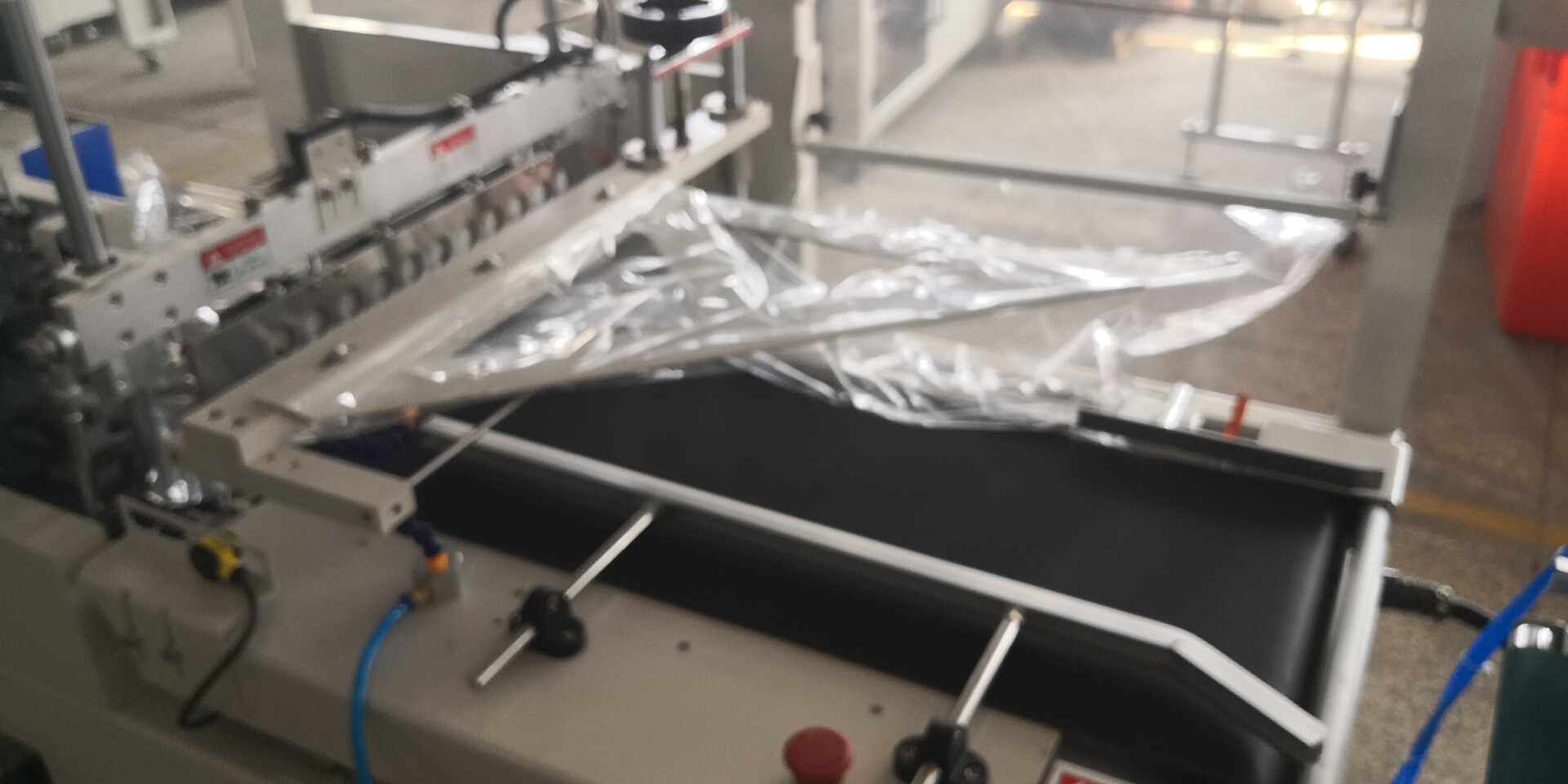

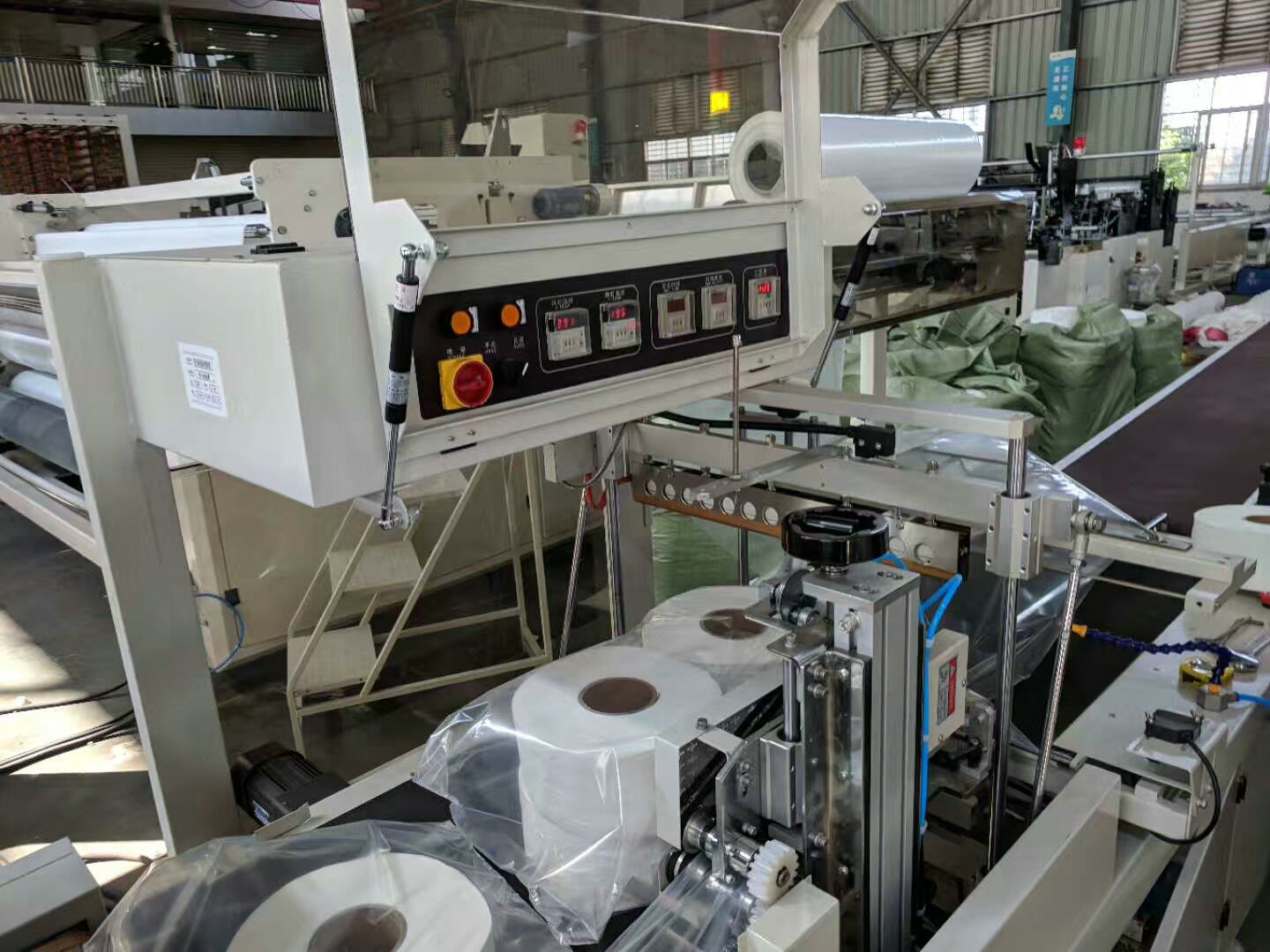

Detailed Pictures
WORKSHOP
Company Profile
Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery Manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
